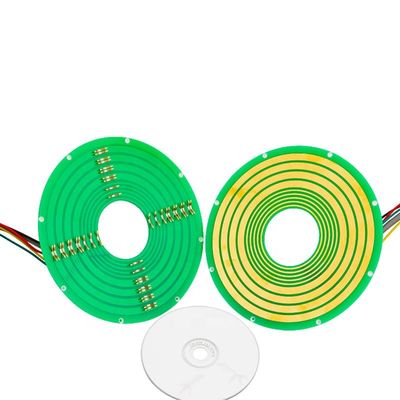

Pancake Slip Ring LPK Series with 5 Circuits 12A Current Rating and 240 VDC Voltage for Industrial Equipment

  • Pancake Slip Ring LPK Series with 5 Circuits 12A Current Rating and 240 VDC Voltage for Industrial Equipment
Luogo di origine Guangdong, Cina
Marca JINPAT
Numero di modello LPKS060-0412-E2
Quantità di ordine minimo 1
Prezzo $180

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Numero circuito 5 Valutazione attuale 12a
Voltaggio 240 VCC Velocità di lavoro 0~60 giri/min
Temperatura di lavoro -20~+60℃ Resistenza dielettrica ≥ 500VAC@50Hz
Isolamento 300 MΩ@300 VCC Rumore elettrico ≤70mΩ
Materiale di contatto Metallo prezioso Materiale abitativo FR-4
Diametro del foro φ60mm Grado di protezione IP54
Supporto Ethernet 1 paio * 100 milioni Spessore 6 mm
Stile anello di contatto del pancake
Evidenziare

5 Circuits Pancake Slip Ring

,

12A Current Rating LPK Slip Ring

,

240 VDC Voltage Rotary Slip Ring
Descrizione di prodotto
Pancake Slip Ring - 60mm Hole Size, 4 Circuit with Ethernet Transmission
Product Description
Bargain Price Only in Alibaba

The LPKS060-0412-E2 is a compact pancake slip ring from JINPAT's LPK series, designed specifically for rotation systems with limited vertical installation space. With a minimal thickness of just 6mm, this slip ring features both copper ring and brush contact surrounding a central hole for optimal space efficiency.

This pin connection slip ring enables continuous rotation while transferring power or data between stationary and rotating parts in electromechanical systems. The standard unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.

Key Features
  • High rotating speed capability
  • Reliable contact with lightweight design
  • Minimal physical noise operation
  • 360° continuous rotation for power and signal transmission
  • No interference or connection drop
  • Fast delivery available
Custom Solutions
  • Ready-made photoelectric encoder options
  • Choice of solid or hollow shafts
  • Other specialized solutions available
Technical Specifications
Parameter Value
Circuits 5
Current Rating 4ckt*12A, 1pair*100M Ethernet
Voltage 240 VDC
Dielectric Strength ≥500VAC@50Hz between circuits
Insulation 300MΩ@300VDC
Electrical Noise ≤70mΩ
Working Speed 0-60 RPM
Contact Material Precious metal
Housing FR-4
Hole Diameter φ60mm
Operating Temperature -20°C to +60°C
Protection Grade IP54
Primary Applications
  • Electric devices and equipment
  • CT medical imaging machines
  • Miniature robotics
  • LED display systems
  • Compact electronic devices
Product Visuals
Pancake Slip Ring LPK Series with 5 Circuits 12A Current Rating and 240 VDC Voltage for Industrial Equipment 0
Pancake Slip Ring LPK Series with 5 Circuits 12A Current Rating and 240 VDC Voltage for Industrial Equipment 1
About JINPAT Electronics

Founded in 1996, JINPAT Electronics is a leading manufacturer specializing in industrial slip rings for diverse applications. Our product range includes Capsule Slip Rings, Through-bore Slip Rings, Large-current Slip Rings, Coax Rotary Joints, Fiber Optic Slip Rings, and more. We support custom solutions for specialized requirements including Ethernet, USB, HDMI, Sensor, CAN Bus, and other interfaces.

All products are manufactured under our ISO9001:2008/ISO14001:2015 certified quality management system, ensuring reliability and performance.

Pancake Slip Ring LPK Series with 5 Circuits 12A Current Rating and 240 VDC Voltage for Industrial Equipment 2
Pancake Slip Ring LPK Series with 5 Circuits 12A Current Rating and 240 VDC Voltage for Industrial Equipment 3
Pancake Slip Ring LPK Series with 5 Circuits 12A Current Rating and 240 VDC Voltage for Industrial Equipment 4
Pancake Slip Ring LPK Series with 5 Circuits 12A Current Rating and 240 VDC Voltage for Industrial Equipment 5
Pancake Slip Ring LPK Series with 5 Circuits 12A Current Rating and 240 VDC Voltage for Industrial Equipment 6
