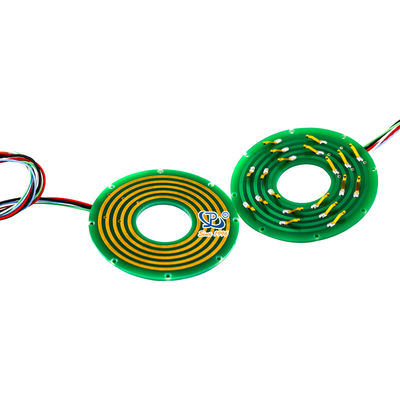

5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Circuiti | 5 circuiti | Valutazione della tensione | 24VAC/DC |
|---|---|---|---|
| Valutazione attuale | 1a per circuito | Materiale di contatto | Oro ad oro |
| Velocità di lavoro | 0 ~ 50rpm | Tensione di lavoro | 380 V CC/CA |
| Resistenza dielettrica | ≥1000V@50Hz(corrente) ≥500V@50Hz(segnale) | Materiale abitativo | Nero di ossidazione della lega di alluminio |
| Resistenza all'isolamento | 500 MΩ a 500 V CC (corrente) 100 MΩ a 300 V CC (segnale) | Lunghezza del filo | Cavo statore: Cavo rotore da 700 mm: 700 mm |
| Temperatura operativa | -20 ° C ~+60 ° C. | Umidità | ≤60%RH |
| Valutazione IP | IP54 | Spessore | 6 mm |
| Velocità di rotazione | Alto | ||
| Evidenziare | 5 Circuits Pancake Slip Ring,360° Rotation Slip Ring,24VAC/DC Voltage Rating Pancake Slip Ring |
||
Descrizione di prodotto
5 Circuit Pancake Slip Rings with Gold-Gold Contact Wide Range Temperature
Product Overview

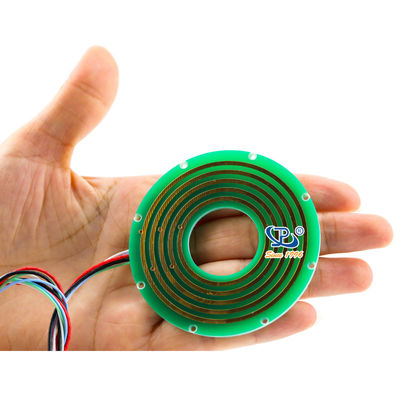

The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, ideal for rotation systems with limited vertical installation space. These compact units combine copper rings and brush contacts around a central hole for maximum space efficiency.
Key Features
- High rotating speed capability
- Reliable gold-to-gold contact with minimal noise
- Continuous 360° power and signal transmission
- Stable connection without interference or drops
- Compact pancake design saves vertical space
Product Advantages
- Pre-configured photoelectric encoder option
- Choice of solid or hollow shaft configurations
- Rapid delivery available
- Custom engineering solutions
Technical Specifications
| Circuits | 4 circuits × 10A + 9 signal circuits | Working Speed | 0-50 rpm |
|---|---|---|---|
| Working Voltage | 380V DC/AC | Contact Material | Gold to gold |
| Dielectric Strength | ≥1000V@50Hz (Current) ≥500V@50Hz (Signal) |
Housing | Oxidation black aluminum alloy |
| Insulation | 500MΩ@500VDC (Current) 100MΩ@300VDC (Signal) |
Wire Length | Stator/Rotor: 700mm each |
| Temperature Range | -20°C to +60°C | Installation Method | Stator fixed on customer spindle |
| Humidity | ≤60% RH | IP Rating | IP54 |
Typical Applications
- Packaging and wrapping machinery
- Semiconductor handling systems
- Industrial automation equipment
