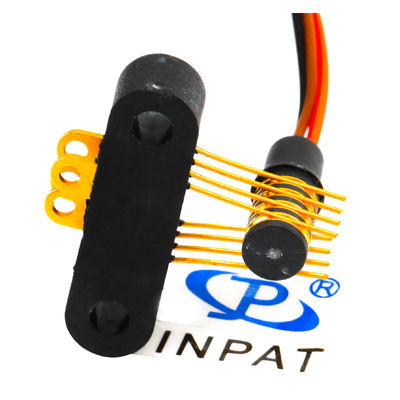

Compact Design Separate Slip Ring with 4 Circuits and 240 VAC/DC Voltage for Flexible UAV Systems
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Voltaggio | 240 VAC/DC | Valutazione attuale | 1-3A |
|---|---|---|---|
| Umidità di lavoro | RH uguale o superiore a 60% | Materiale di contatto | Oro ad oro |
| Materiale del corpo | Metallo prezioso | Numero di circuiti | 4 |
| Resistenza all'isolamento | 50 MΩ @ 500 VDC | Velocità operativa | 0-100 giri/min. |
| Diametro esterno | Φ2,9 mm | Temperatura di lavoro | -20~+60°C |
| Resistenza dielettrica | ≥200 V CA e 50 Hz, tra ciascun circuito | Rumore elettrico | 30 mΩMin |
| Lunghezza del filo di piombo | norma 250mm | Dimensione del piombo | Rame placcato argento 32# |
| Velocità massima | 200 giri/min continui | ||
| Evidenziare | 4 Circuits Separate Slip Ring,240 VAC/DC Voltage Slip Ring,Compact Design Rotary Electrical Connector |
||
Descrizione di prodotto
Compact Design Separate Slip Ring, 4 Circuits, For Flexible UAV System
Product Overview
Sometimes a self-contained "capsule" slip ring is not practical due to system size constraints or cost limitations. We provide the slip ring (rotor) and brush block (stator) as separate components for customer integration. The rotor features consecutive individual rings along the axis of rotation in a drum configuration.
Quick Details
| Model | LPS-04 (solid) |
| Number of circuits | 4 |
| Voltage | 240 VAC/DC |
| Insulation Resistance | 50 MΩ @ 500 VDC |
| Current Rating | 1-3A |
| Operating Speed | 0-100 rpm |
Key Features
- 4 circuit configuration
- Speed up to 200 rpm continuous operation
- Gold-to-gold contacts for reliable performance
- 250mm standard lead lengths
- Compatible with data bus protocols
- Sealed unit options available
- Flexible, color-coded, silver-plated lead wires
- Precision ball bearings exceed commercial application life requirements
Technical Specifications
| Circuits | 4 circuits | OD (mm) | Φ2.9 |
| Operating Speed | 0-100rpm | Voltage Rating | 240VAC/DC or higher |
| Working Temperature | -20°C to +60°C | Current Rating | 1-3A |
| Working Humidity | 60%RH or higher | Dielectric Strength | ≥200 VAC at 50Hz between circuits |
| Insulation Resistance | 50MΩ at 500VDC | Electrical Noise | 30 mΩ Min |
| Contact Material | Gold to Gold | Lead Wire Length | Standard 250mm |
| Housing Material | Precious metal | Lead Size | 32# silver plated copper |
Product Advantages
- Low torque design minimizes system torque budget
- Compact footprint fits demanding space requirements
- Smooth operation with minimal electrical noise
- Quick shipment available for urgent requirements
- 360° continuous rotation capability
- High bandwidth transfer performance
Company Information
JINPAT Electronics specializes in high-quality slip ring solutions with over 20 years of experience. Our 12,000 square meter facility and 500+ employees support a wide range of commercial, industrial, and military applications.
Frequently Asked Questions
What is a slip ring?
An electromechanical device that transmits power and signals between stationary and rotating structures, eliminating damage-prone dangling wires.
An electromechanical device that transmits power and signals between stationary and rotating structures, eliminating damage-prone dangling wires.
Do you offer custom solutions?
Yes, our engineering team can develop custom slip rings tailored to your specific requirements.
Yes, our engineering team can develop custom slip rings tailored to your specific requirements.
Note: Additional product solutions available upon request. Contact us for custom requirements.
