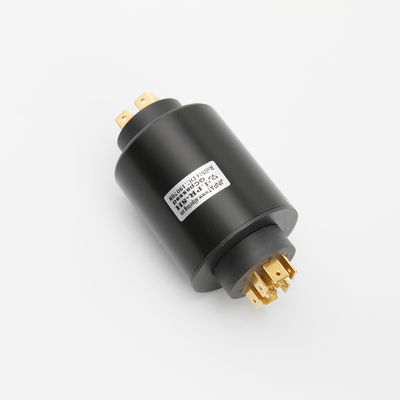

360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery

  • 360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery
Luogo di origine Cina
Marca JINPAT
Certificazione ISO/CE/RoHS/UL
Numero di modello LPR-8H
Quantità di ordine minimo 10 pezzi
Prezzo negotiable

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Numero circuito 8 Valutazione attuale 2 pezzi*5 A, 6 pezzi*20 A
Voltaggio 240 VCA Velocità di lavoro 0 ~ 300 giri/min
Temperatura di lavoro -20~+60℃ Resistenza dielettrica 500V@50Hz tra i circuiti
Isolamento 100MΩ@500VDC Rumore elettrico ≤15mΩ
Materiale di contatto Metallo prezioso Materiale abitativo Plastica ingegneristica
Tipo di filo Perno placcato d'argento Grado di protezione IP54
Angolo di rotazione 360 gradi Tipo di connessione anello di contatto del perno
Forza di attrito Basso
Evidenziare

360 Degree Rotation Slip Ring

,

8 Circuit Rotary Joint

,

240VAC Swivel Joint
Descrizione di prodotto
360 Degree Rotation Swivel Joint 8 Circuit 240VAC 5A/20A 0~300 RPM Industrial Machinery Cable Reel Slip Ring
Bargain Price Only in Alibaba
Rotary Joint Slip Ring Description
The LPR series is a group of Pin Slip Rings designed and manufactured by JINPAT Electronics. This unit features an exquisite design that replaces wires with pins for connections, complying with RoHS standards. Its convenient installation makes it ideal for systems requiring power transmission in compact spaces with plug-and-play functionality.
The LPR-8H pin connection slip ring is suitable for any electromechanical system needing continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit uses gold contacts at the rotary interface and color-coded lead wires on both stator and rotor for simplified electrical connections.
Rotary Joint Slip Ring Features
  • Mercury-free unit with environmentally friendly design
  • 360° rotating transmission capability
  • Large current-carrying capacity
  • No interference or data package loss
  • Extremely low electrical noise and friction force
  • Quick connection with spade terminal
Rotary Joint Slip Ring Advantages
  • Optional circuit number configurations
  • Long service life
  • Maintenance free operation
Specifications
Circuits 8
Current Rating 2ckt*5A, 6ckt*20A
Voltage 240 VAC
Dielectric Strength 500V@50Hz between circuits
Insulation 100MΩ@500VDC
Electrical Noise ≤15mΩ
Working Speed 0~300 RPM
Contact Precious metal
Housing Engineering plastic
Wire Size Silver plated pin
Working Temperature -20~+60℃
Protection Grade IP54
Rotary Joint Slip Ring Main Applications
  • Electric devices
  • CT machines
  • Mini robots
  • LED industry
  • Mini-type devices
Outline Drawing
360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery 0
Product Display
360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery 1
Company Introduction
JINPAT Electronics, founded in 1996, is a leading manufacturer of slip rings committed to developing industrial slip rings for various applications. Our product range includes Capsule Slip Rings, Through-bore Slip Rings, Large-current Slip Rings, Coax Rotary Joints, Fiber Optic Slip Rings, Separate Slip Rings, and Pin Slip Rings as standard off-the-shelf units. We also support custom designs for specialized applications including Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, and RS422 interfaces. All products meet our quality management system certified by IS09001:2008/ISO14001:2015.
360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery 2
360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery 3
360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery 4
360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery 5
