6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment

  • 6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment
Luogo di origine Cina
Marca JINPAT
Certificazione ISO/CE/RoHS/UL
Numero di modello LPS-06
Quantità di ordine minimo 10 pezzi
Prezzo negotiable

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Numero circuito 6 Valutazione attuale 2a
Voltaggio 240 VCA Velocità di lavoro 0 ~ 300 giri/min
Temperatura di lavoro -20~+60℃ Resistenza dielettrica 500V@50Hz tra i circuiti
Isolamento 100MΩ@500VDC Materiale di contatto Metallo prezioso
Dimensione del filo Teflon in rame placcato argento 28# UL Lunghezza del filo di piombo Rotore: 250±5mm
Stile anello di contatto separato Connessione dello statore Opzionale
Tipo di filo Cavi con codice colore Materiale dell'interfaccia Contatti dell'oro
Tipo di installazione Facile da installare
Evidenziare

6 Circuit Separate Slip Ring

,

240V Voltage Electrical Slip Ring

,

0~300 RPM Rotary Slip Ring
Descrizione di prodotto
6 Circuit Separate Slip Ring with 240V Voltage for Electrical Test Equipment
Premium Quality Slip Ring for Continuous Rotation Applications
The LPS-06 separate slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components. This standard unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Key Features
  • Separate stator and rotor design
  • Capable of transmitting power and weak signal combinations
  • Optional stator connection configurations
  • Low electrical resistance
  • Simple installation process
  • Compact design for space-constrained applications
Performance Advantages
  • Extended operational lifespan
  • Rapid delivery available
  • Customization options to meet specific requirements
Technical Specifications
Parameter Value
Circuits 6
Current Rating 2A
Voltage 240 VAC
Dielectric Strength 500V@50Hz between circuits
Insulation 100MΩ@500VDC
Working Speed 0-300 RPM
Contact Material Precious metal
Wire Specification 28# silver plated copper Teflon UL
Lead Wire Length Rotor: 250±5mm
Operating Temperature -20°C to +60°C
Typical Applications
  • Electrical testing equipment
  • CT scanning machines
  • Compact robotic systems
  • LED display technology
  • Miniature electronic devices
Product Visualization

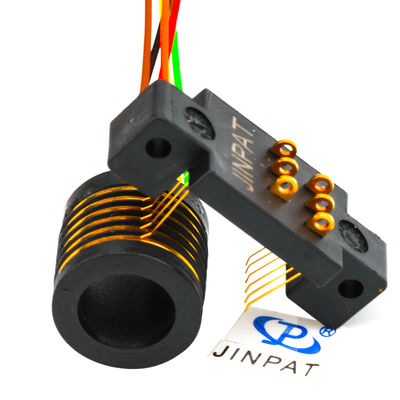

6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 0
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 1
Manufacturer Profile
JINPAT Electronics, established in 1996, is a leading manufacturer specializing in industrial slip rings for diverse applications. The company maintains a comprehensive product line including capsule slip rings, through-bore slip rings, high-current slip rings, and custom solutions for specialized interfaces.
Corporate Advantages
  • 12,000+ square meter production facility with 500+ employees
  • Recognized as National High and New Technology enterprise
  • Holder of 69 technology patents
  • Global partnerships with industry leaders
  • 10,000+ successful design implementations
  • 20+ years of research and development experience
  • Complimentary custom engineering solutions
  • Expedited order fulfillment
Visit JINPAT Electronics
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 2
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 3
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 4
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 5
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment 6
