8 Circuit Capsule Slip Ring 1A 240VAC/DC Gold Contacts

  • 8 Circuit Capsule Slip Ring 1A 240VAC/DC Gold Contacts
Luogo di origine Guangdong, Cina
Marca JINPAT
Numero di modello LPMS-10A-08
Quantità di ordine minimo 1
Prezzo $43.88

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Numero di circuiti 8 Voltaggio 240 VAC/DC
Valutazione attuale 1 amp per circuito Velocità operativa 0-200 giri/min.
Materiale di contatto Oro ad oro Intervallo di temperatura -20 a +60
Dimensione del piombo 30# rame placcato in argento Lunghezza del piombo 250 mm (9.843 pollici)
Resistenza all'isolamento 50 MΩ @ 500 VDC Rumore elettrico min 30mΩ
Materiale abitativo Ingegneria in plastica o metallo Rotazione 360° continuo
Trasferimento di larghezza di banda Alto Coppia Basso
Progetto Compatto
Evidenziare

8 circuit slip ring

,

capsule slip ring with gold contacts

,

240VAC/DC slip ring
Descrizione di prodotto

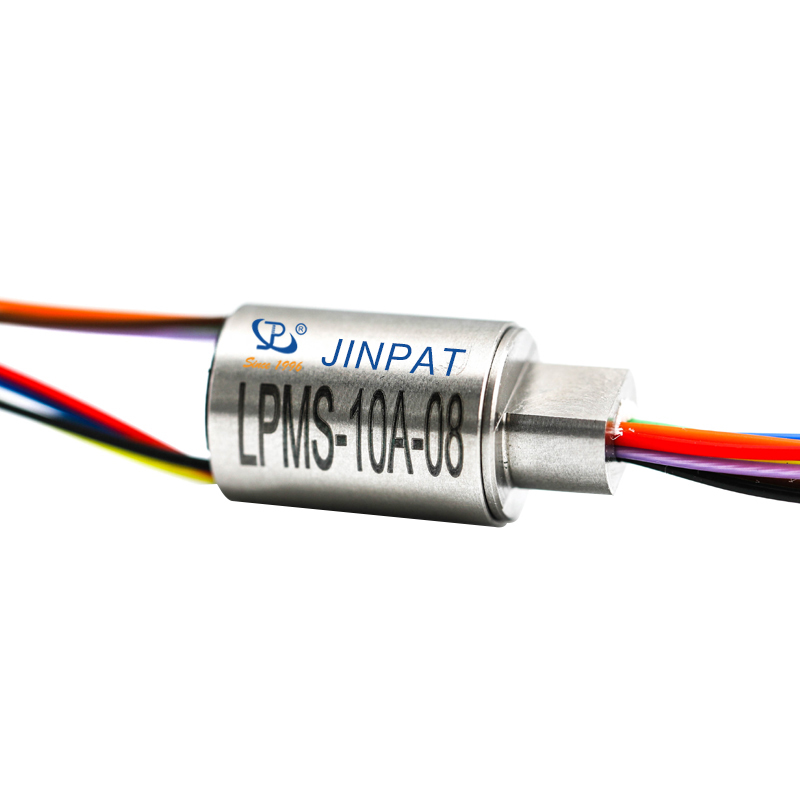

LPMS-10A-08 Super Miniature Slip Ring
Low Torque 1A/Road, Can Be Mixed Motor Slip Ring
Product Description

Bargain Price Only in Alibaba

The LPMS-10A-08 super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

The LPMS-10A-08 allows tremendous flexibility in dealing with system size restrictions. It is available in 1 to 8 circuit configurations.

Key Features
  • 8 circuits models
  • 1 amp per circuit, 240VAC/DC
  • Precision assembly to provide exceptional rotational life
  • Speed up to 200 rpm continuous
  • Gold-Gold contacts
  • Flexible, color-coded, silver-plated, lead wires
  • Superior handling of low level control signals
  • Metal housing optional
Technical Specifications
Operating Speed 0-200 rpm
Number of Circuits 8
Voltage 240 VAC/DC
Current Rating 1 amp per circuit
Temperature Range -20 to +60°C
Contact Material Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Insulation Resistance 50 MΩ @ 500 VDC
Electrical Noise 30mΩ Min
Housing Material Engineering plastic or metal
8 Circuit Capsule Slip Ring 1A 240VAC/DC Gold Contacts 0 8 Circuit Capsule Slip Ring 1A 240VAC/DC Gold Contacts 1
Product Advantages
  • Low torque minimizes system torque budget
  • Compact design to fit in the most demanding space
  • Smooth running
  • Low electrical noise
  • Quick shipment per your urgent requirement
  • 360° continuous rotation
  • High bandwidth transfer capability
  • Rapid shipment
Our Manufacturing Advantages

Welcome to JINPAT Electronics
Providing free custom slip rings solutions, creating propulsion for your technology

  • With a large plant of over 12,000 square meters and more than 500 employees
  • The company has been awarded the title of "National High and New Technology" and has obtained 69 patents
  • Long-term cooperation with global famous enterprises and agents all over the world
  • With Over 10,000 designs with success in civil, military, commercial and industrial applications
  • Founded in 1996, with more than 20 years of production and R & D experience
  • Providing free custom slip rings solutions, which can be suitable for a variety of equipment
  • Fast delivery
8 Circuit Capsule Slip Ring 1A 240VAC/DC Gold Contacts 2 8 Circuit Capsule Slip Ring 1A 240VAC/DC Gold Contacts 3 8 Circuit Capsule Slip Ring 1A 240VAC/DC Gold Contacts 4 8 Circuit Capsule Slip Ring 1A 240VAC/DC Gold Contacts 5 8 Circuit Capsule Slip Ring 1A 240VAC/DC Gold Contacts 6
