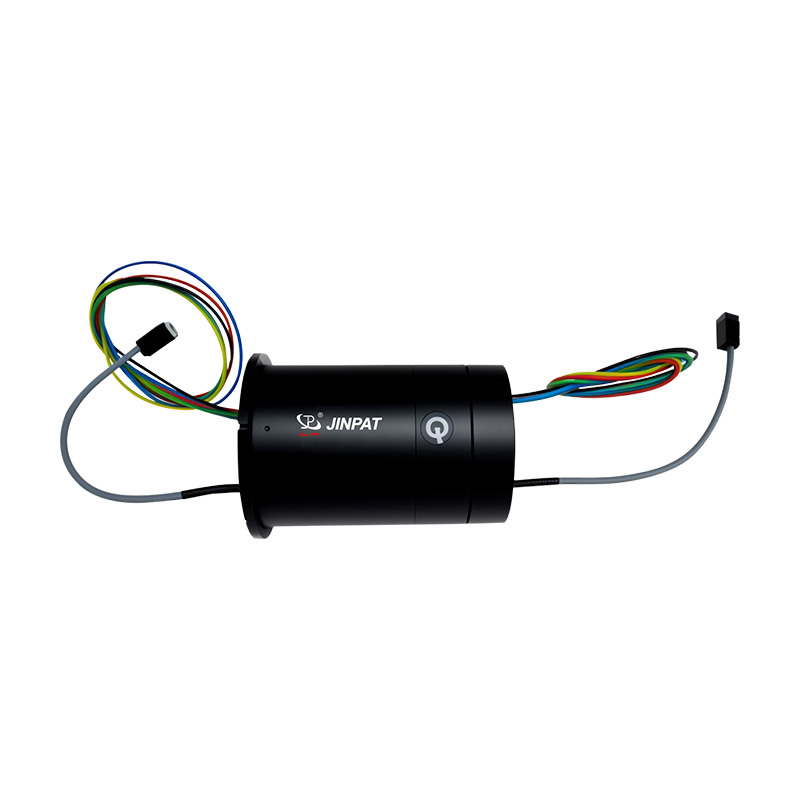

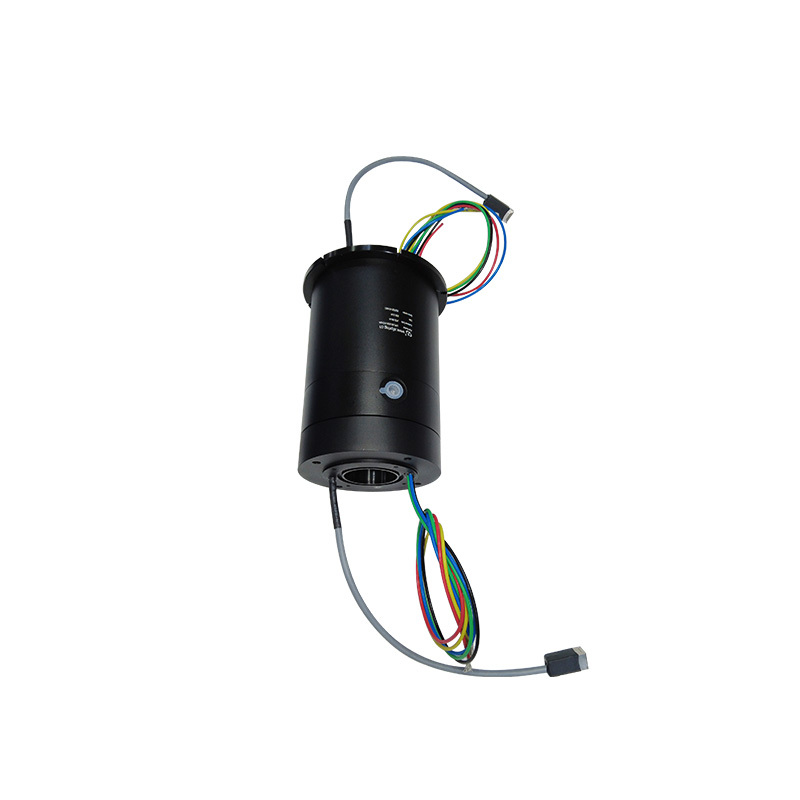

Pneumatic Hydraulic Slip Ring 30A 5-Channel with Gigabit Ethernet

  • Pneumatic Hydraulic Slip Ring 30A 5-Channel with Gigabit Ethernet
  • Pneumatic Hydraulic Slip Ring 30A 5-Channel with Gigabit Ethernet
  • Pneumatic Hydraulic Slip Ring 30A 5-Channel with Gigabit Ethernet
  • Pneumatic Hydraulic Slip Ring 30A 5-Channel with Gigabit Ethernet
Luogo di origine Cina
Marca JINPAT
Certificazione ISO9001.ISO14000.CE.UL.FCC.RoHS
Numero di modello LPPL050-0530-01E3-02A
Quantità di ordine minimo 1pcs
Prezzo negotiable
Imballaggi particolari Standard/su richiesta
Tempi di consegna 2 settimane aro
Termini di pagamento T/t
Capacità di alimentazione 100 unità/settimana

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Corrente ad anello 5*30a+1*Gigabit Ethernet Materiale abitativo Lega di alluminio
Temperatura operativa -20 ℃ a 60 ℃ Tensione di valutazione 0 ~ 220 VAC/DC
Umidità operativa ≤60%RH Resistenza all'isolamento ≥500MΩ@50Hz (potenza) ； ≥300MΩ@50Hz (segnale)
Velocità operativa 0 ~ 30rpm Lunghezza del piombo Statore e rotore ≥300mm
Diametro interno （id） Ø50 mm
Evidenziare

Pneumatic hydraulic slip ring 30A

,

5-channel slip ring with Ethernet

,

Hydraulic rotary joint gigabit Ethernet
Descrizione di prodotto

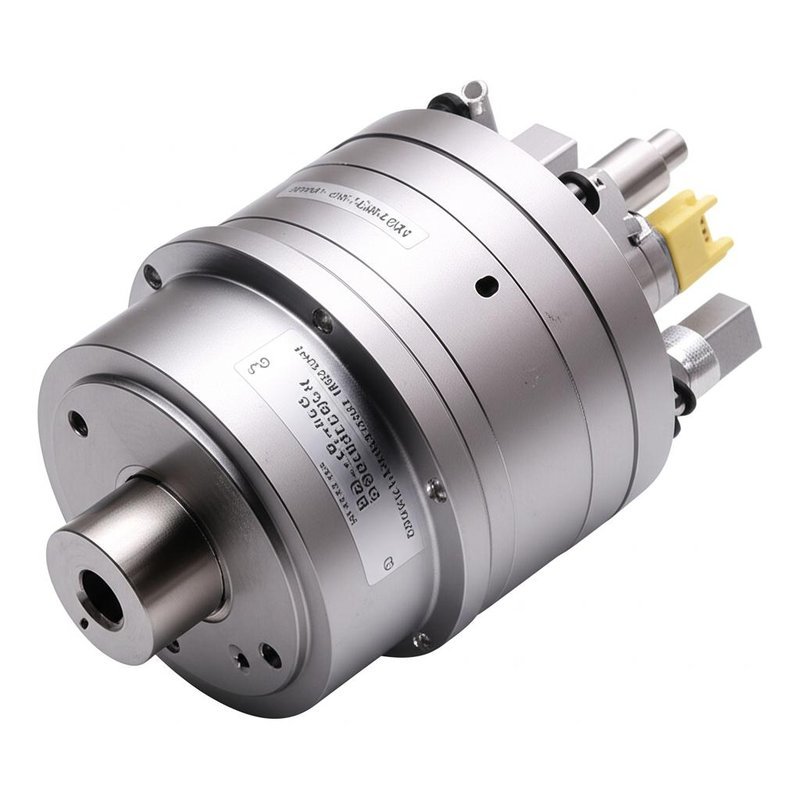

13. Pneumatic Hydraulic Rotary Joints The Perfect Combination of Pneumatic and Hydraulic Systems
Product Specifications
Attribute Value
Ring Current 5*30A+1*Gigabit Ethernet
Housing Material Aluminum Alloy
Operating Temperature -20℃ to 60℃
Rating Voltage 0~220 VAC/DC
Operating Humidity ≤60%RH
Insulation Resistance ≥500MΩ@50HZ(Power)；≥300MΩ@50HZ(Signal)
Operating Speed 0~30rpm
Lead Length Stator and rotor ≥300mm
Inner Diameter（ID） Ø50mm
Product Overview

The LPPL050-0530-01E3-02A is a compact pneumatic-hydraulic slip ring specially designed for lithium battery and new energy production equipment. It combines 5 circuits of 30A power transmission, 1 channel Gigabit Ethernet, and 2 integrated pneumatic passages, ensuring stable performance in demanding industrial environments.

With its compact size, low torque, and ability to operate under vacuum conditions up to -30kPa, this slip ring is ideal for modern battery manufacturing machines where space-saving design and reliable signal/power/air transmission are critical.

This advanced slip ring supports efficient data transfer, power delivery, and pneumatic integration in a single unit, offering high reliability and long service life for continuous operation. It is an excellent solution for automation systems, lithium battery assembly lines, and new energy applications.

Key Features
  • 5 channels * 30A power circuits
  • 1 Gigabit Ethernet channel
  • 2 pneumatic passages integrated
  • Works under vacuum -30kPa
  • Compact design with low torque
  • Designed for lithium battery & new energy production
Primary Applications
  • Lithium battery equipment
  • New energy production machinery
  • Automation and industrial robots
  • Compact systems requiring power, signal, and pneumatic transmission
Customization Options
  • Placement of custom circuitry
  • Special mechanical integration features
  • Addition of unique components
  • Inclusion of coax and miniature data bus cables
About JINPAT

With 30 years of slip ring manufacturing experience, JINPAT operates from a 7000 square meter facility with professional R&D teams, advanced equipment, and over 300 skilled employees. Our products are recognized as leading brands in Europe and North America, meeting diverse specifications with durable, reliable quality.

Pneumatic Hydraulic Slip Ring 30A 5-Channel with Gigabit Ethernet 0
Pneumatic Hydraulic Slip Ring 30A 5-Channel with Gigabit Ethernet 1
Pneumatic Hydraulic Slip Ring 30A 5-Channel with Gigabit Ethernet 2
Pneumatic Hydraulic Slip Ring 30A 5-Channel with Gigabit Ethernet 3

In addition to connector/terminal processing, our CNC center provides one-stop service for supporting parts manufacturing including housings and mounting components.

For more details about this slip ring product, please contact JINPAT. We will provide a satisfactory custom solution!
