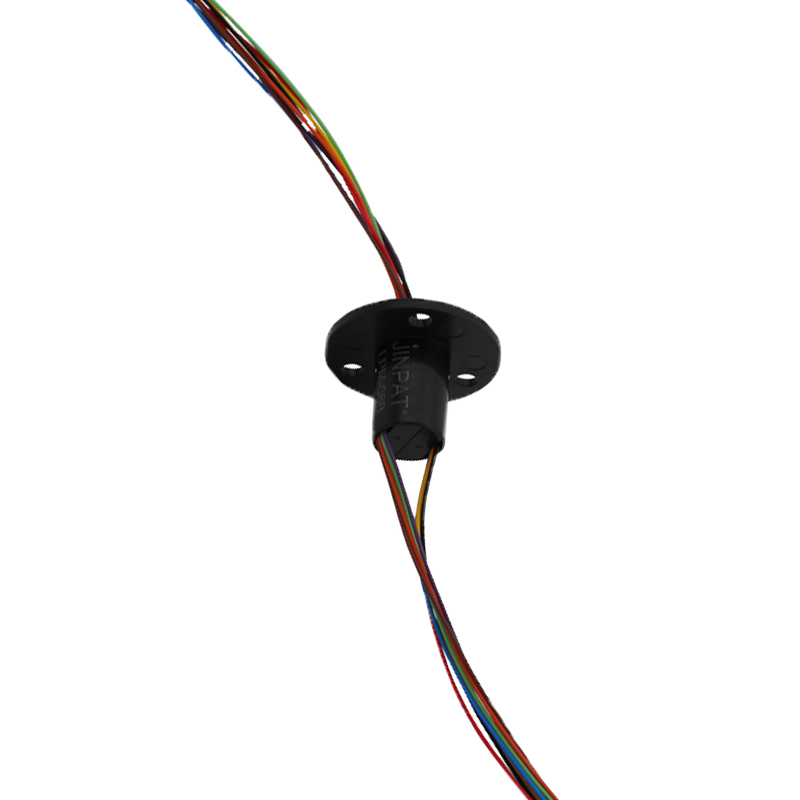

Miniature 8 Circuit Slip Ring Gold Contact 0-300rpm IP40

  • Miniature 8 Circuit Slip Ring Gold Contact 0-300rpm IP40
Luogo di origine Guangdong, Cina
Marca JINPAT
Numero di modello LPM-08B-0404 (JP37-019-01HW)
Quantità di ordine minimo 1
Prezzo US$25

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Velocità rotante 0 ~ 300rpm Materiale di contatto Oro ad oro
Grado di protezione IP40 Circuiti totali 8 circuiti
Capacità corrente 4 circuiti*4a Tensione di valutazione 110VAC/DC
Resistenza dielettrica 200VAC@50Hz (P) Resistenza all'isolamento 50MΩ@200VDC (P)
Fluctuazione della resistenza dinamica 35mΩ Dimensione del filo di piombo AWG28 # rame placcato in argento, teflon
Temperatura operativa -20 ° C ~+60 ° C. Umidità ≤60%RH
Materiale abitativo Ingegneria della plastica Lunghezza del filo dello statore 200 mm
Lunghezza del filo del rotore 55 mm
Evidenziare

Miniature slip ring gold contact

,

8 circuit slip ring 0-300rpm

,

Rotary slip ring IP40
Descrizione di prodotto
Miniature Capsule Slip Ring 8 Circuits 0~300rpm Low Resistance
Ideal for Smart Robots and Compact Applications
Product Specifications
Attribute Value
Type Electronic Accessories
Rotating Speed 0~300rpm
Contact Material Gold To Gold
Life span Customizable
Protection grade IP40
Product Description
Premium Quality at Competitive Pricing
Our miniature slip rings provide the perfect solution for power and signal transmission in devices with limited installation space. The JINPAT LPM-08B-0404 model features a durable metal housing with gold-to-gold contacts for stable performance, and a toughened material design for enhanced aesthetics. With a slender profile similar to a pencil, this compact unit contains 8 total circuits (4 circuits rated for 4A current transmission).
Key Features and Advantages
  • Military-grade materials and manufacturing processes
  • Stable performance for accurate signal transmission
  • Long lifespan with high protection (maintenance-free operation)
  • Compact, lightweight design with streamlined structure
  • Easy installation and smooth operation
  • Low torque with minimal electrical noise and resistance
Technical Specifications
Electrical & Electronics
Circuits Total: 8 circuits (4 circuits × 4A)
Rating Voltage 110VAC/DC
Dielectric Strength 200VAC@50Hz(P)
Insulation Resistance 50MΩ@200VDC (P)
Dynamic Resistance Fluctuation Value 35MΩ
Lead Wire Size AWG28 # silver plated copper UL, Teflon
Mechanical
Rotating Speed 0~300rpm
Contact Material Gold To Gold
Housing Material Engineering Plastics
Wire Length Stator: 200mm
Rotor: 55mm
Environmental & Others
Temperature -20°C~+60°C
Humidity ≤60%RH
Protection grade IP40
Life span Customizable
Note "P" stands for power, "S" stands for signal
Product Outline
Miniature 8 Circuit Slip Ring Gold Contact 0-300rpm IP40 0
Company Advantages
JINPAT Electronics provides free custom slip ring solutions to propel your technology forward:
  • 12,000+ square meter facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise with 69 patents
  • Global partnerships with renowned enterprises and worldwide agents
  • 10,000+ successful designs across civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Custom solutions for diverse equipment requirements
  • Fast delivery times
Miniature 8 Circuit Slip Ring Gold Contact 0-300rpm IP40 1
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
An electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. Slip rings enhance mechanical performance, simplify system operation, and eliminate damage-prone dangling wires in movable joints.
What kinds of slip rings do we provide?
  • Electrical Slip Rings (capsule, through-bore, miniature)
  • Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage/amps per circuit, operating speed, and mounting type. For custom solutions or selection assistance, contact our engineering team.
Do you provide custom slip rings?
Yes, our engineers develop perfect solutions for unique requirements. Contact us to discuss your custom slip ring needs.
