24 Circuit Slip Ring 240V 2A Gold Contact for Robotic Arm

  • 24 Circuit Slip Ring 240V 2A Gold Contact for Robotic Arm
Luogo di origine Guangdong, Cina
Marca JINPAT
Numero di modello LPM-24B
Quantità di ordine minimo 1
Prezzo $55

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Numero di circuiti 24 Voltaggio 240 VAC/DC
Valutazione attuale 2 amp per circuito Velocità operativa 0-200 giri/min.
Materiale di contatto Oro ad oro Intervallo di temperatura -20 da ℃ a +60 ℃
Dimensione del piombo 30# rame placcato in argento Lunghezza del piombo 250 mm
Resistenza dielettrica ≥200 VAC @50Hz Resistenza all'isolamento 50 MΩ @ 500 VDC
Rumore elettrico 30mΩmin Tipo di rotazione Continuo
Resistenza a contatto Basso Coppia Basso
Manutenzione Gratuito
Evidenziare

24 circuit slip ring gold contact

,

240V slip ring for robotic arm

,

2A rotary slip ring with warranty
Descrizione di prodotto
JINPAT 24 Passage Capsule Slip Ring
Compact Design with Ultra-Low Resistance and Long Working Life for Robotic Arm Applications
Special Offer: Bargain Price Only on Alibaba
Product Overview
This 24-circuit slip ring provides a reliable rotary electrical interface for systems requiring continuous rotation while transferring power or data between stationary and rotating structures. Also known as a rotary electrical joint, commutator, or collector, it features gold-to-gold contacts for exceptional durability.
Key Specifications
Attribute Value
Type Electronic Accessories
Number of Circuits 24
Voltage 240 VAC/DC
Current Rating 2 amps per circuit
Operating Speed 0-200 rpm
Contact Material Gold to Gold
Temperature Range -20℃ to +60℃
Dielectric Strength ≥200 VAC @50Hz between circuits
Insulation Resistance 50 MΩ @ 500 VDC
Product Features
  • Smooth rotation with minimal friction
  • High reliability and stable performance
  • Compact design for space-constrained applications
  • Extended working life with gold-to-gold contacts
  • Low electrical noise and resistance
  • Maintenance-free operation
Technical Advantages
  • Gold-to-gold contact ensures maximum durability
  • Consistent operation across full speed range
  • Minimal current fluctuation
  • 30mΩ minimum electrical noise
  • Standard 250mm (9.843inch) lead length
Product Images

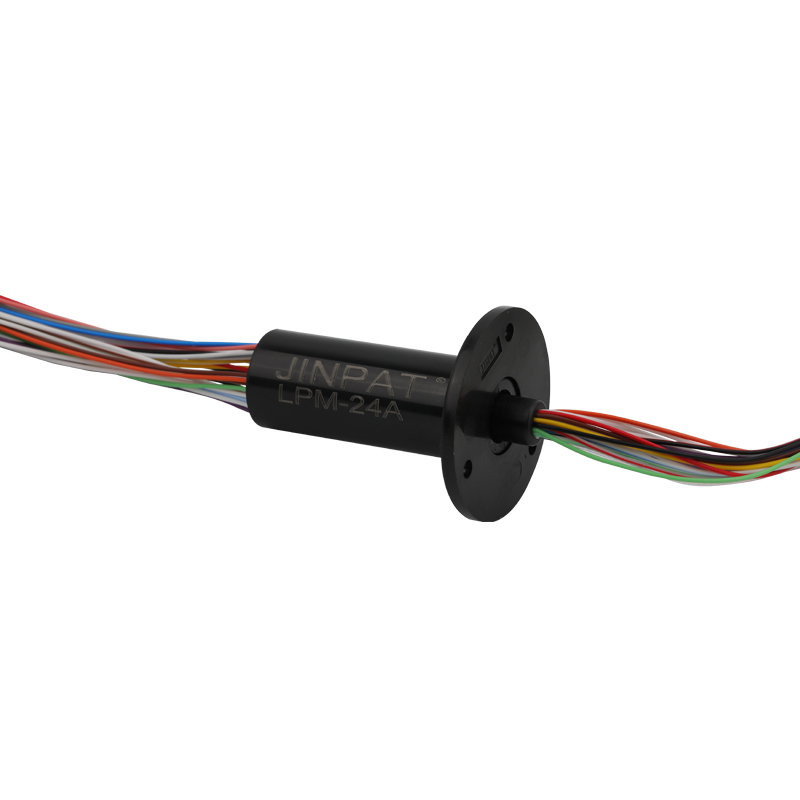

24 Circuit Slip Ring 240V 2A Gold Contact for Robotic Arm 0
24 Circuit Slip Ring 240V 2A Gold Contact for Robotic Arm 1
Manufacturer Information
JINPAT Electronics specializes in high-quality slip ring solutions with over 20 years of experience in design and manufacturing.
Company Highlights
  • 12,000 square meter production facility with 500+ employees
  • Recognized as National High and New Technology enterprise
  • Holder of 69 patents in slip ring technology
  • Established in 1996 with extensive R&D experience
  • Over 10,000 successful designs across multiple industries
  • Global partnerships with leading enterprises
  • Fast delivery and custom solutions available
24 Circuit Slip Ring 240V 2A Gold Contact for Robotic Arm 2
24 Circuit Slip Ring 240V 2A Gold Contact for Robotic Arm 3
Frequently Asked Questions
What is a slip ring?
A slip ring is an electromechanical device that enables power and signal transmission between stationary and rotating structures, eliminating damage-prone dangling wires and improving mechanical performance.
Available Slip Ring Types
  • Electrical Slip Rings (capsule, through-bore, miniature)
  • Signal Slip Rings (USB, fiber optic, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Solutions
  • Large Volume Series
Selection Guidance
For optimal slip ring selection, provide your application's operating parameters including circuit count, voltage/current requirements, speed, and mounting configuration. Our engineers can assist with custom solutions tailored to your specific needs.
Contact JINPAT for Custom Slip Ring Solutions
