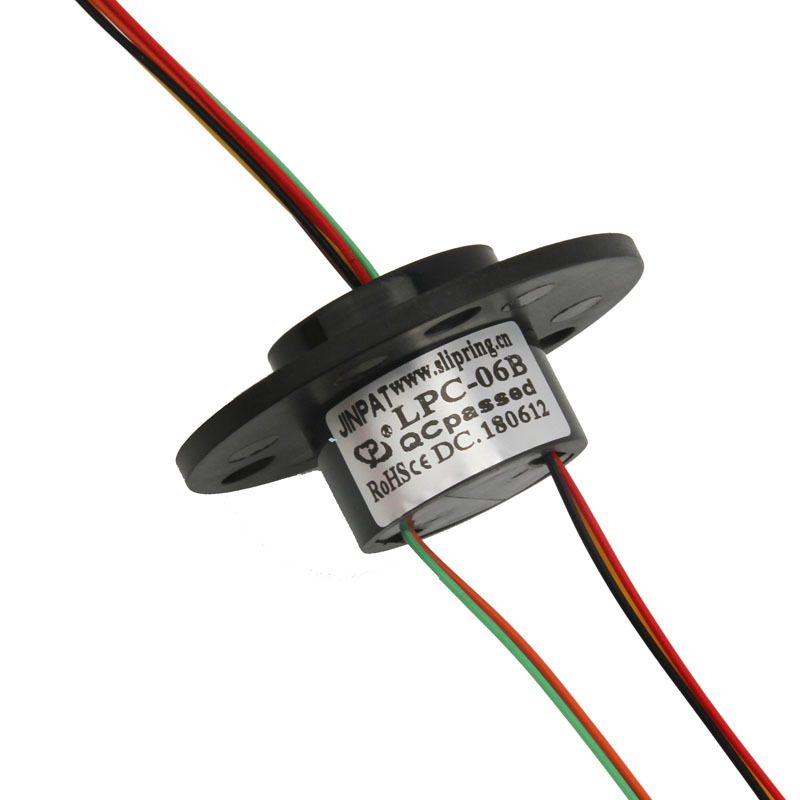

6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B

  • 6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B
Luogo di origine Guangdong, Cina
Marca JINPAT
Numero di modello LPC-06B
Quantità di ordine minimo 1
Prezzo US$14.50

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Grado di protezione IP54 Velocità di lavoro 300 giri / min
Circuiti 6 Valutazione attuale 2A o più alto
Voltaggio 240VAC Temperatura di lavoro -40~+80℃
Materiale di contatto Oro ad oro Specifica del filo AWG28#, teflon placcato in argento, UL
Lunghezza del filo di piombo Rotore: 250mm; Statore: 250mm Isolamento 1000MΩ@500VDC
Resistenza dielettrica / Rumore elettrico /
Resistenza a contatto molto basso Stabilità di funzionamento Alto
Coppia Basso
Evidenziare

6 circuit gold contact slip ring

,

2A 300 RPM slip ring

,

LPC-06B rotary slip ring
Descrizione di prodotto
Mini Type Wind Turbine Slip Rings 6 Circuits 2A 300 RPM
Miniature Capsule Slip Ring, 6 Channel Flat Slip Ring
Product Specifications
Attribute Value
Type Electronic Accessories
Typical Application Rotary Table
Optional Rotating Speed
Contact Material Gold-Gold
Features Very Low Contact Resistance
Product Description

Bargain Price Only in Alibaba

The LPC-06B capsule slip ring/6 channel flat slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components.

This standard off-the-shelf unit features gold contacts at the rotary interface with color-coded lead wires on both stator and rotor for simplified electrical connections.

LPC-06B Slip Ring Parameters
Parameter Value
Protection Grade IP54
Working Speed 300 RPM
Circuits 6
Current Rating 2A or higher
Voltage 240VAC
Working Temperature -40°C to +80°C
Electric Contact Material Gold to Gold
Wire Specification AWG28#, silver plated Teflon, UL
Lead Wire Length Rotor: 250mm; Stator: 250mm
Insulation 1000MΩ@500VDC
LPC-06B Slip Ring Applications
  • Electric devices
  • Motor equipment
  • Industrial machinery
  • LED industry
  • Medical equipment
  • Process control equipment
  • Monitoring systems
  • Electrical testing equipment
  • Military rotary tables
  • Robotics
  • Rotating platforms
  • Display and demonstration equipment
  • Instruments and meters
LPC-06B Slip Ring Features
  • High durability and long life
  • Very low contact resistance
  • Compatible with data bus protocols
  • Smooth operation and high stability
  • Low torque requirements
  • Supports various data signal types
  • Compact structural design
Product Visuals
6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B 0 6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B 1
Manufacturer Advantages

JINPAT Electronics provides free custom slip ring solutions, creating propulsion for your technology:

  • 12,000+ square meter facility with 500+ employees
  • National High and New Technology award recipient with 69 patents
  • Global partnerships with renowned enterprises
  • 10,000+ successful designs across civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Custom solutions for diverse equipment requirements
  • Fast delivery capabilities
6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B 2
Typical Applications
6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B 3
Company Information
6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B 4 6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B 5 6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B 6 6 Circuit Gold Contact Slip Ring 2A 300 RPM LPC-06B 7
