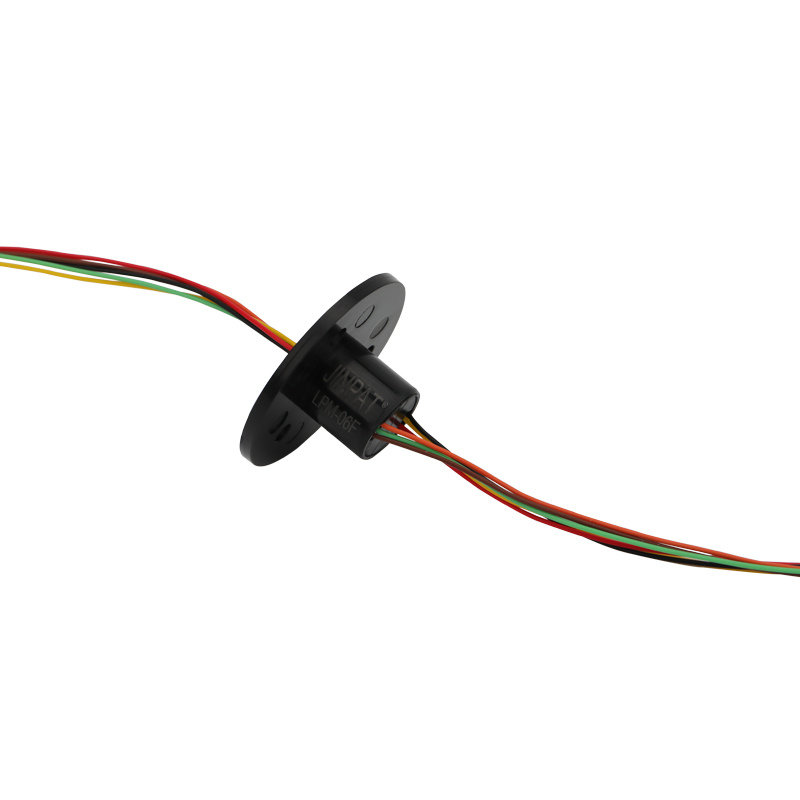

6 Circuit Mini Slip Ring 2A 240V Gold Contacts for Remote Control

  • 6 Circuit Mini Slip Ring 2A 240V Gold Contacts for Remote Control
Luogo di origine Guangdong, Cina
Marca JINPAT
Numero di modello LPM-06f
Quantità di ordine minimo 1
Prezzo $10

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Diametro esterno 12,5 mm Numero di circuiti 6
Valutazione di tensione 240 VAC/DC Valutazione attuale 2 amp per circuito
Velocità operativa 0-200 giri/min. Materiale di contatto Oro ad oro
Intervallo di temperatura -20 a +60 Dimensione del piombo 30# rame placcato in argento
Lunghezza del piombo 250 mm Resistenza dielettrica ≥200 VAC @50Hz
Resistenza all'isolamento 50mΩ @ 500 VDC Rumore elettrico 30mΩmin
Velocità massima 300 giri / min Rotazione 360° continuo
Materiale abitativo Metallo (opzionale)
Evidenziare

6 circuit mini slip ring

,

slip ring with gold contacts

,

2A 240V rotary slip ring
Descrizione di prodotto
Conductive Mini Slip Ring OD 12.5 mm 6 Wires /2A Long Working Life Capsule Slipring
Product Specifications
Attribute Value
Type Electronic Accessories
Number of Circuits 6
Voltage 240 VAC/DC
Current Rating 2 amps per circuit
Operating Speed 0-200 rpm
Contact Material Gold to Gold
Features Remote Control
Product Overview

The LPM-06F miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

The sliding contact is established by a brush that presses against a metal ring. The "brush" can appear as metal fibers or as a single wire/spring with a contact pad.

6 Circuit Mini Slip Ring 2A 240V Gold Contacts for Remote Control 0
Technical Specifications
Operating Speed 0-200 rpm
Temperature Range -20 to +60°C
Lead Size 30# silver plated copper
Lead Length Standard 250 mm
Dielectric Strength ≥200 VAC @50Hz, between each circuit
Insulation Resistance 50MΩ @ 500 VDC
Electrical Noise 30mΩMin
Key Features
  • 6 circuit models available
  • 2 amps per circuit, 240 VAC/DC
  • Precision assembly for exceptional rotational life
  • Speed up to 300 rpm continuous operation
  • Gold-Gold contacts for reliable performance
  • Flexible, color-coded, silver-plated lead wires
  • Superior handling of low level control signals
  • Optional metal housing available
Product Advantages
  • Low torque minimizes system torque budget
  • Compact design fits demanding space requirements
  • Smooth running operation
  • Low electrical noise
  • Quick shipment available for urgent requirements
  • 360° continuous rotation capability
  • Custom components can be added
6 Circuit Mini Slip Ring 2A 240V Gold Contacts for Remote Control 1
Manufacturer Information

JINPAT Electronics specializes in high-quality slip ring solutions with:

  • 12,000 square meter production facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise
  • 69 patents held
  • Global partnerships with renowned enterprises
  • Over 10,000 successful designs across multiple industries
  • 20+ years of production and R&D experience since 1996
  • Free custom slip ring solutions for various equipment
  • Fast delivery service
6 Circuit Mini Slip Ring 2A 240V Gold Contacts for Remote Control 2 6 Circuit Mini Slip Ring 2A 240V Gold Contacts for Remote Control 3 6 Circuit Mini Slip Ring 2A 240V Gold Contacts for Remote Control 4 6 Circuit Mini Slip Ring 2A 240V Gold Contacts for Remote Control 5
Frequently Asked Questions
What is a slip ring?

A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.

What types of slip rings do you provide?
  • Electrical Slip Rings (capsule, through-hole, miniature)
  • Signal Slip Rings (USB, fiber optic, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?

Selection requires details about your application's operating parameters including total circuits, voltage/amps per circuit, operating speed, and mounting type. Contact us for assistance with custom solutions.

Do you provide custom slip rings?

Yes, our engineers can develop perfect custom solutions for your specific needs. Contact us to discuss your requirements.
