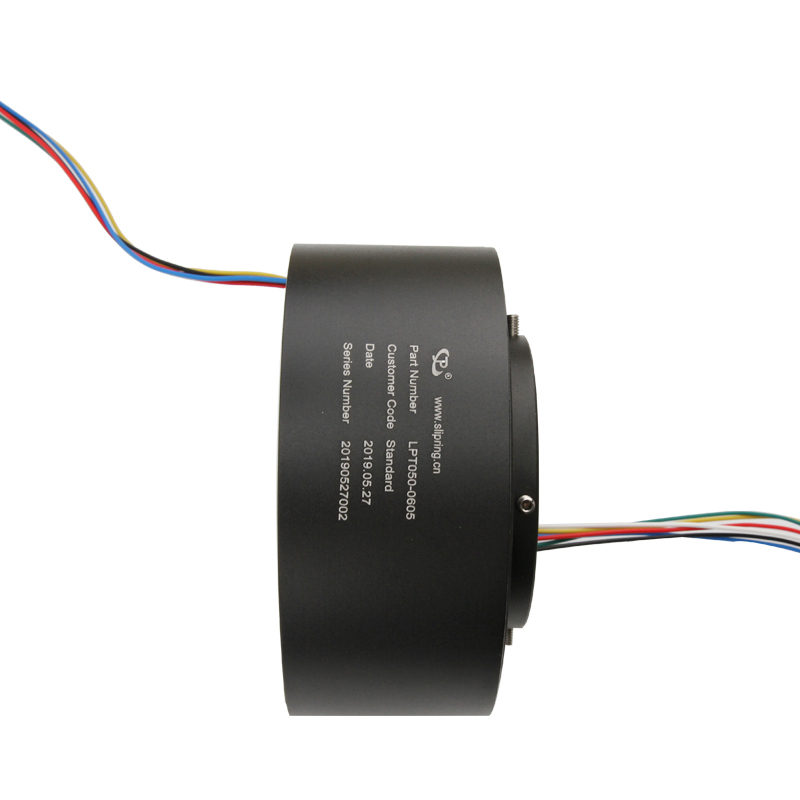

6 Circuit 5A Hollow Slip Ring 50mm Bore for Industrial Machinery

  • 6 Circuit 5A Hollow Slip Ring 50mm Bore for Industrial Machinery
Place of Origin Guangdong, China
Marca JINPAT
Model Number LPT050-0605
Minimum Order Quantity 1
Prezzo $112.90-136

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Circuits 1-24 circuits Voltage Rating 380VAC/DC or higher
Operating Speed 0-300rpm Current Rating 5A per circuit
Contact Material Precious metal Through-bore Size 50mm
Outside Diameter 119mm Working Temperature -10~ +50
Working Humidity 60%RH or higher Dielectric Strength ≥200V@50Hz between each circuit
Insulation Resistance 50MΩ@ 500VDC Electrical Noise 30mΩ Min
Lead Wire Length 300mm (11.811inch) Housing Material Aluminum alloy
Torque ≤9.25 g*m
Evidenziare

6 circuit hollow slip ring

,

5A slip ring for industrial machinery

,

50mm bore through hole slip ring
Descrizione di prodotto
Slip Ring with Hollow, 6 Circuit 5A Hole Size 50mm
Ideal for wind generator applications and other rotating equipment requiring reliable power transmission.
Key Specifications
Type Electronic Accessories
Circuits 1-24 circuits
Voltage Rating 380VAC/DC or higher
Operating Speed 0-300rpm
Current Rating 5A per circuit
Contact Material Precious metal
Product Features
  • 50mm unobstructed through-bore for routing space
  • Fiber brush technology for maintenance-free operation
  • Compact 119mm outside diameter
  • Modular design with flexible circuit configurations
  • Steel bearings and machined shaft for harsh environments
  • Standard collar mounting with optional flange mounting
  • Sealed unit with IP50 protection
  • Continuous 360° rotation capability
Technical Specifications
Electrical
Voltage Rating 380VAC/DC or higher
Current Rating 2A/5A/10A/15A per circuit
Dielectric Strength ≥200V@50Hz between each circuit
Insulation Resistance 50MΩ@ 500VDC
Electrical Noise 30mΩ Min
Mechanical
Contact Material Precious metal
Lead Wire Length Standard 300mm (11.811inch)
Housing Material Aluminum alloy
Torque ≤9.25 g*m (for reference)
Protection IP50
Key Advantages
• Transfers control and data signals reliably
• Fiber brush technology eliminates need for lubrication
• Modular design allows for custom configurations
• Durable construction for industrial environments
Typical Applications
  • Packaging/wrapping machinery
  • Semiconductor handling systems
  • Industrial machinery
  • Exhibit display machinery
  • Medical equipment
  • Rotary index tables
  • Process control equipment
  • Emergency lighting and robotics
  • Palletizing machines
  • Heavy equipment turrets
  • Cable reels
Product Images
6 Circuit 5A Hollow Slip Ring 50mm Bore for Industrial Machinery 0 6 Circuit 5A Hollow Slip Ring 50mm Bore for Industrial Machinery 1
Company Advantages
  • 12,000 square meter production facility with 500+ employees
  • National High and New Technology award recipient with 69 patents
  • 20+ years of experience since 1996
  • 10,000+ successful designs for various applications
  • Global partnerships with major enterprises
  • Free custom slip ring solutions
  • Fast delivery times
6 Circuit 5A Hollow Slip Ring 50mm Bore for Industrial Machinery 2 6 Circuit 5A Hollow Slip Ring 50mm Bore for Industrial Machinery 3 6 Circuit 5A Hollow Slip Ring 50mm Bore for Industrial Machinery 4 6 Circuit 5A Hollow Slip Ring 50mm Bore for Industrial Machinery 5
